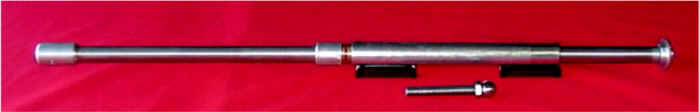

Clark HRAT Special Bottom-Mount Pushrod

This pushrod is designed to be used on cylinders where standard HRA pushrods would be located next to an exhaust manifold or turbocharger, and exposed to abnormally high temperatures. The lifter unit on this pushrod is located well below the manifold, out of the proximity of the high-heat source.

Part Number Engine OEM Length Magnum Length
CE41200 HRAT 49 1/2″ 48 1/2″

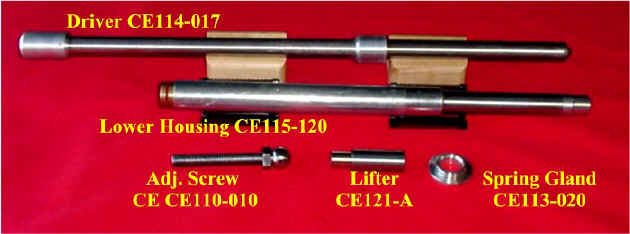

Parts furnished With Above Pushrod

Part Number Description
CE115-050 Lower Housing for HRAT Bottom-Mount Pushrod above
CE114-017 Extended Driver with Teflon socket and mid-mounted hood
CE110-010 Adjusting Screw 5/8″-NC X 5 3/16″ Long, with 1″ Ball Attached
CE113-020 Spring Gland 1″ OD X 1″ ID Aluminum
CE121-A Hydraulic Lifter Unit
