MAGNUM SPECIAL SIZES, WAX-SLABBING CHILL PLATES

25 1/4″ WIDTH PLATES

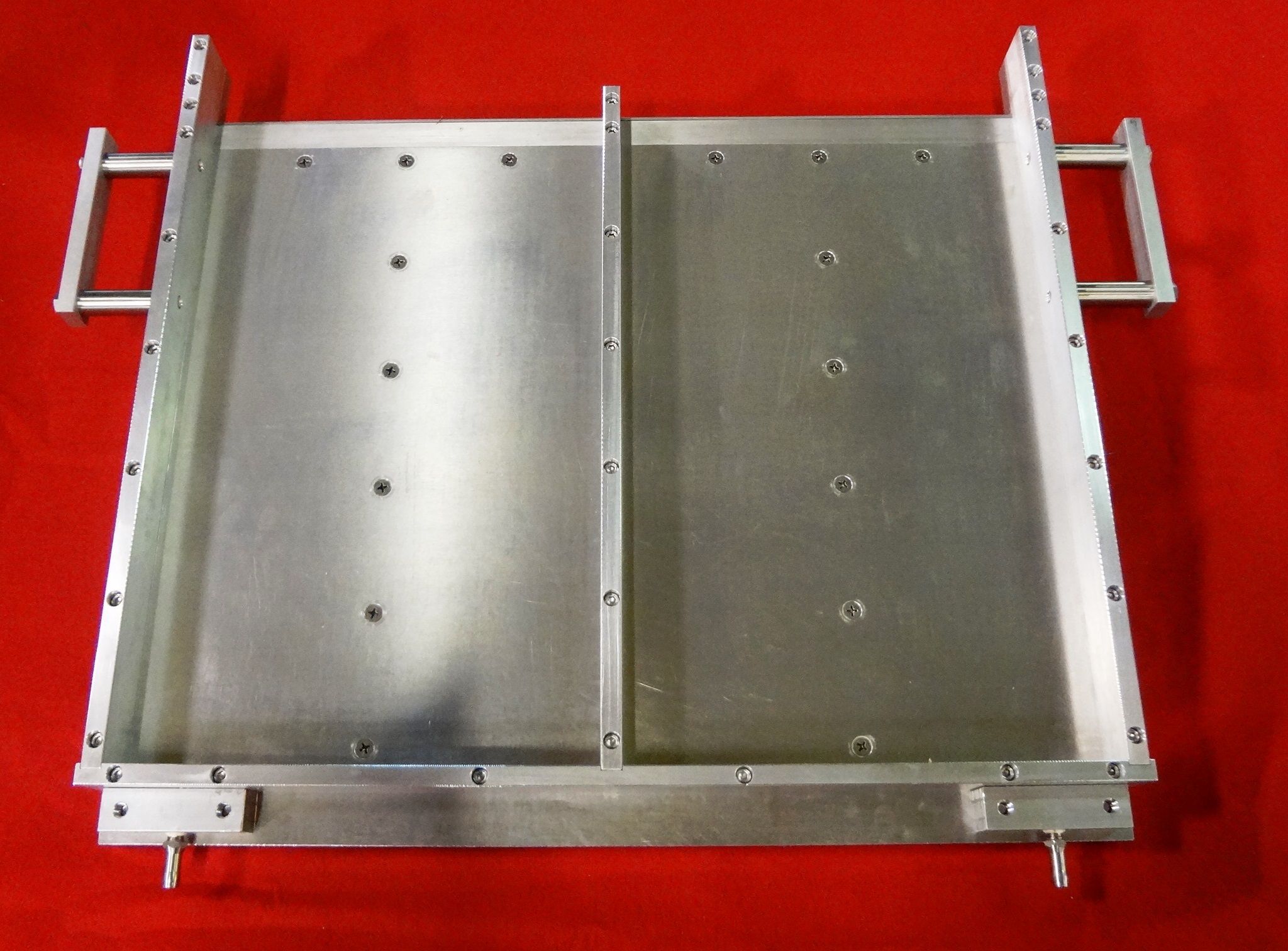

We can provide a 25 1/4″ Magnum Chill Plate to fit your existing press, provided that the height from the side rail to the top of the slab is 7″, which is standard on most plates.

The Magnum 25 1/4″ chill plate produces two slabs 11 3/8″ x 19 1/2″ x 1 1/2″ thick, weighing approximately 10.1 pounds each, or 20.2 pounds total. One hundred plates produce 2,080 pounds, or slightly over one US ton.
The stack height of each plate is 2.25″. The outside width of the plate, excluding handles, is 25.25″ . The plates can fit into existing presses 25.50″ or wider.

Our standard 25 1/4″ Magnum Chill Plate can be fitted with 1 1/2″ E-Frames to produce 10.1 lb slabs, for those of you whose customers must have that size and weight.
The Magnum 25 1/4″, 10.1 lb chill plate produces two slabs 11 7/8″ x 19 1/2″ x 1 1/2″ thick, weighing approximately 10.1 pounds each, or 20.2 pounds total. One hundred plates produce 2,020 pounds, or slightly over one US ton. The stack height of each plate is 2 1/8″. The outside width of the plate, excluding handles, is 25.25″ . The plates can fit into existing presses 25.50″ or wider.
